Unestech2Bay 2.5" SATA Hot Swap SSD HDD Mobile Rack Support 7mm hard drive

Product Code : ST25207 Product Info :

* Supports 2 x 2.5" SATA SSD / HDD into a single 3.5" floppy bay

* Accommodates 2.5" drives with 5mm, 7mm height

* Aluminum door with partial ABS-plastic for full protection

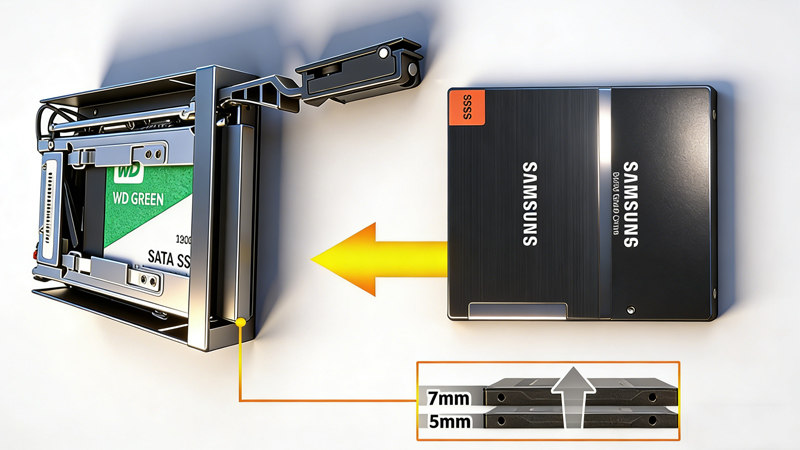

* Drive tray-less design for quick hot-swapping

* Safety key lock mechanism to prevent accidental drive ejection

* Supports SATA data and power cables with locking latches

Product Introduction

The Unestech ST25207 is a 2.5 inch SSD / HDD Mobile Racks designed for 3.5 inch floppy drive bay. The installation is easy, simply mount ST25207 on the 3.5" drive bay,and then connect the SATA connectors to the device and you are ready to go.

Utilizing the small space of the 3.5” drive bay (floppy bay), the Hdd Enclosure is perfect for applications where space is limited. Small-Form-Factor PCs , embedded systems, Box PCs and in-vehicle systems can all benefit from this dual 2.5” SATA drive enclosure.

The mobile rack support any 2.5 inch solid state drive or 2.5 inch hard drive ranging from 5mm to 7mm height. All drive slots support full SATA 6Gb/s speed and compatibility with SATA’s hot-swap function.

New trayless design with wilder spring reduce the movement of the thinner HDD and make sure the thinner HDD connected to the backplane firmly. So the enclosure can be used in stand up vertical without any problems.

For drive security, the lock system on the tray makes sure your hard drive will not eject when not needed. Additionally, the key lock provides extra protection to theft of SSDs as well as safeguards any sensitive data.

Each bay has its own indicator light to notify you of any hard drive activity. The drive activity light is blue when powered, and flashes when the drive is in use.

Supports SATA data and SATA power cables with locking latch designs, ensuring that once installed, your cables will never slip out of place and cause data loss from accidental drive ejection.

Product Parameters
Model No
ST25207
Support Drive Size
2.5" HDD / SSD
Drive Type
SATA
Number of Drives
2
Max Drive Height
5-7mm
Drive Bay
3.5" drive bay
Host Interface
2 x SATA 7pin
Power Input
2 x SATA 15Pin Power
Support Hot-Swap
Yes
Support HDD Capacity
No limitation
Structure / Material
Aluminum
Transfer Rate
Up to 6Gbps
Drive Security
Key lock
Package Contents
Device, user manual, keys, screws,
Product documentation
