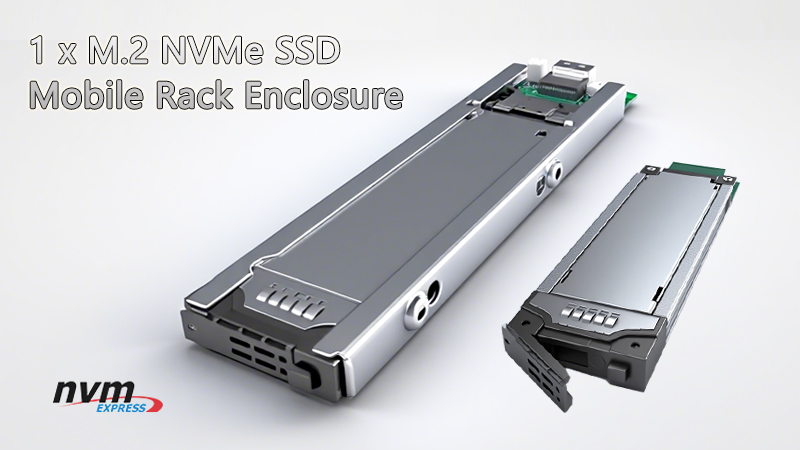

ST9313 M.2 NVMe PCIe 4.0 SSD Mobile Rack for Tool-less Installation

Product Introduction

ST9313 1-slot M.2 NVMe SSD Mobile Rack, designed specifically for industrial-grade applications. Features a swappable M.2 SSD tray, supporting tool-free quick installation and maintenance, greatly simplifying the deployment and replacement process for solid-state drives. This product is the ideal choice for customized industrial PCs, server racks, and embedded systems to achieve high-performance, high-reliability storage expansion.

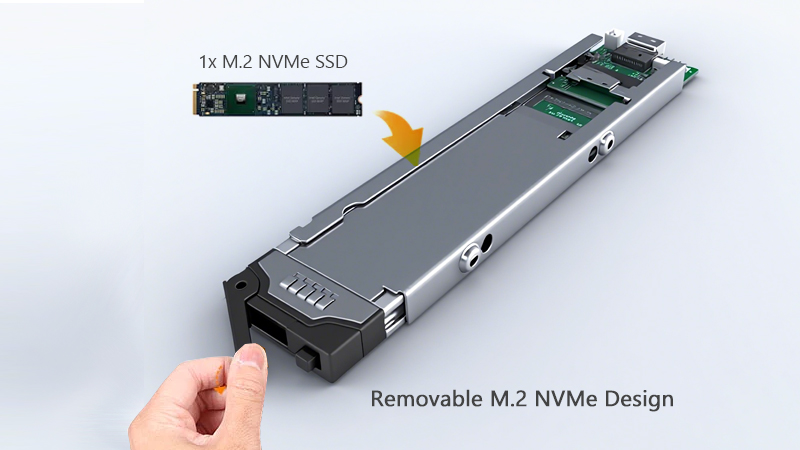

Tool-less HDD Tray

The ST9313 enclosure features a swappable tool-less HDD tray,  eliminating the need for screwdrivers or other tools, allowing users to quickly complete the installation and replacement of M.2 NVMe solid-state drives, significantly improving maintenance efficiency. This convenient design makes it particularly suitable for industrial and commercial application scenarios that require frequent drive changes or regular backup tasks.

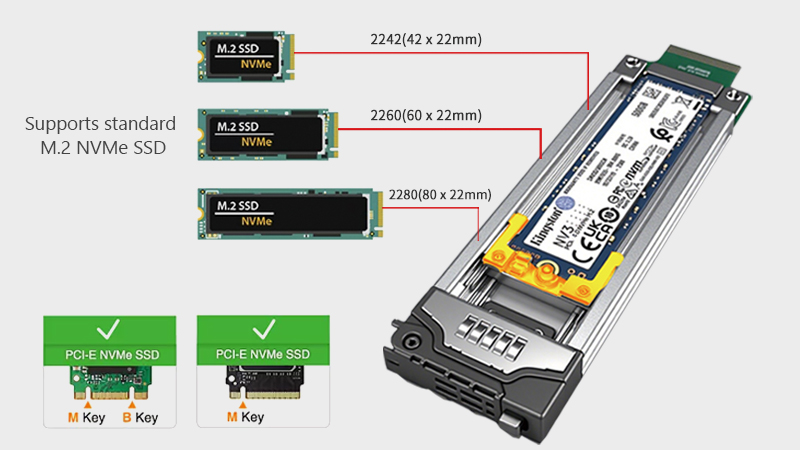

Compatible M.2 SSD Types

The ST9313 enclosure is compatible with a variety of sizes of PCIe NVMe SSDs. It features built-in adjustable M.2 slide rails and a snap-on latch, supporting 2242, 2260, and 2280 form factor solid-state drives. During installation, simply insert the SSD into the slide rail, slide the latch to lock it in place, and complete the tool-free secure mounting. The operation is simple and quick.

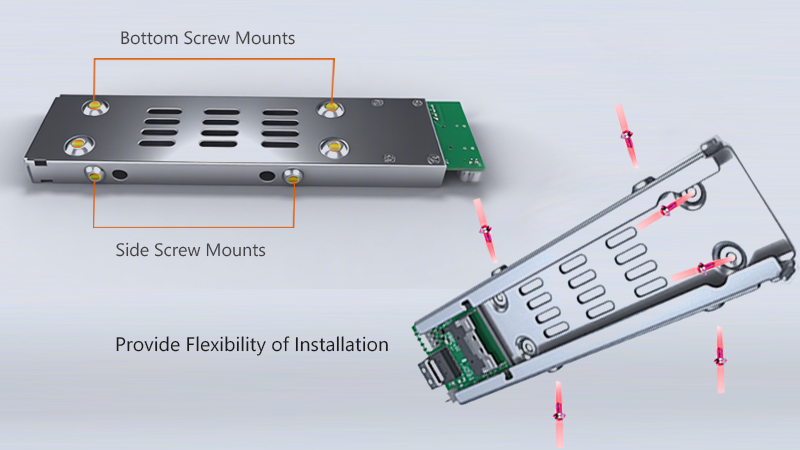

Flexible Installation Design

The ST9313 enclosure adopts an innovative multi-directional installation structure, offering flexible deployment options. Its design allows for both horizontal installation via standard holes on the bottom and vertical mounting using the reserved installation holes on the device sides. This bidirectional installation design enables you to flexibly choose the most suitable mounting orientation based on the actual spatial layout of racks, industrial PCs, or embedded systems, fully adapting to diverse installation environment requirements.

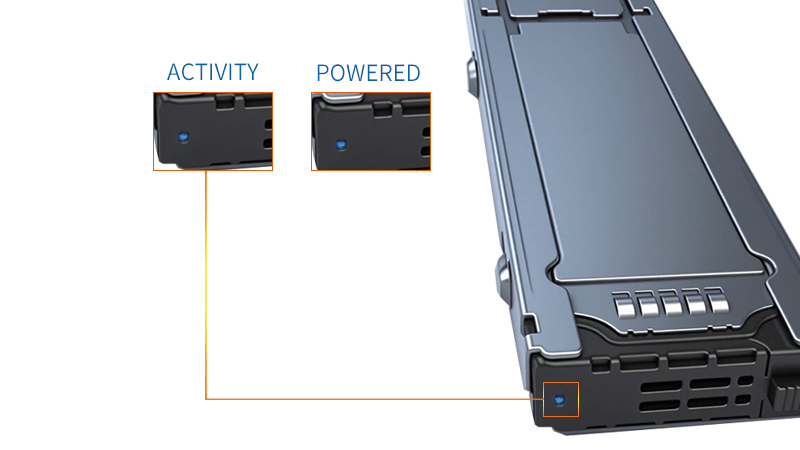

LED Indicator

The SSD mobile rack of the ST9313 enclosure is equipped with a status indicator light, which can intuitively display the power-on and read/write activity status of the solid-state drive. When no SSD is installed in the tray, the indicator light automatically turns off, effectively saving energy and embodying an efficient, energy-saving design philosophy.

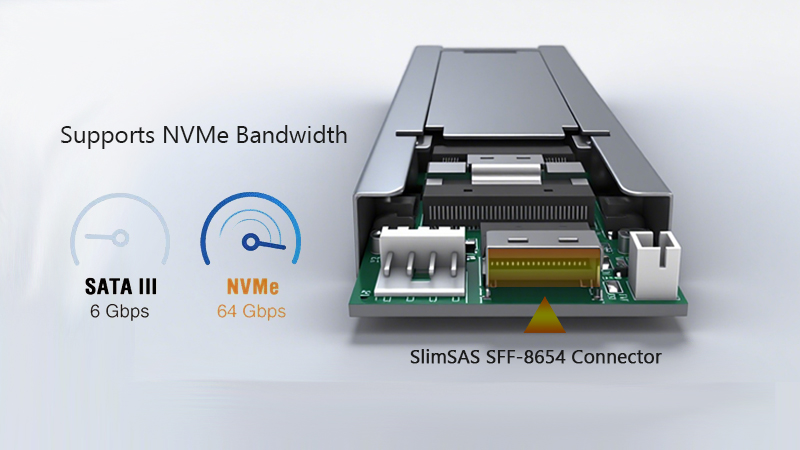

PCIe 4.0 Performance

To fully leverage the performance potential of M.2 NVMe solid-state drives, the ST9313 enclosure utilizes a PCIe 4.0 standard SlimSAS (SFF-8654) interface for connection, supporting data transfer speeds of up to 64 Gbps. By connecting to the host system via the SlimSAS 4i (SFF-8654) interface, this product is compatible with motherboards equipped with this interface or additional NVMe PCIe expansion cards, ensuring a stable and high-efficiency high-speed data transmission channel.

Main Features:

Fits 1x M.2 PCIe NVMe SSD - 2242, (42mm), 2260 (60mm), and 2280 (80mm)

Uses 1x SlimSAS 4i (SFF-8654) connector and support up to 64Gbps transfer speed

Removable drive tray with tool-less drive installation design for easy drive maintenance

Aluminum drive tray and included thermal pad for optimal heat dissipation

Drive activity LED indicator to monitor SSD status
