Fits 1x M.2 PCIe NVMe SSD - 2242, (42mm), 2260 (60mm), and 2280 (80mm)
Uses 1x SlimSAS 4i (SFF-8654) connector and support up to 64Gbps transfer speed
Removable drive tray with tool-less drive installation design for easy drive maintenance
Aluminum drive tray and included thermal pad for optimal heat dissipation
Drive activity LED indicator to monitor SSD status

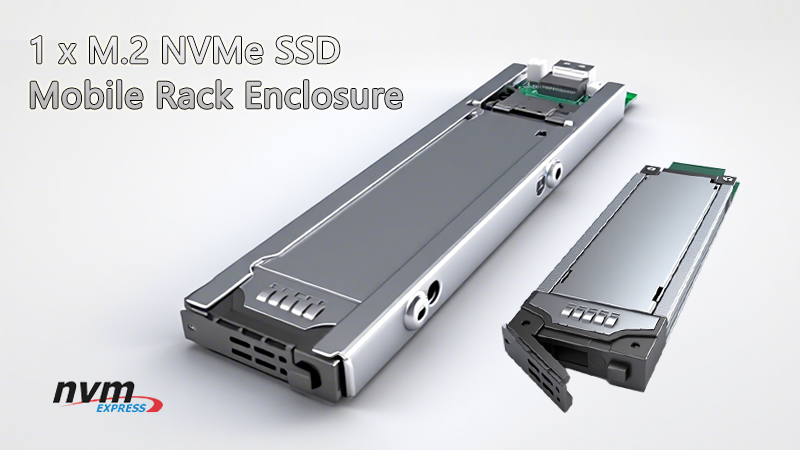

Unestech ST9313 is a PCIe 4.0 Mobile Rack Enlcosure designed to support one M.2 NVMe SSD, featuring a tool-less removable M.2 NVMe SSD tray for seamless drive access and easy maintenance. ST9313 SSD mobile rack is a perfect storage upgrade solution for customized Industrial-PC, Server Rackmount, and Embedded Systems.

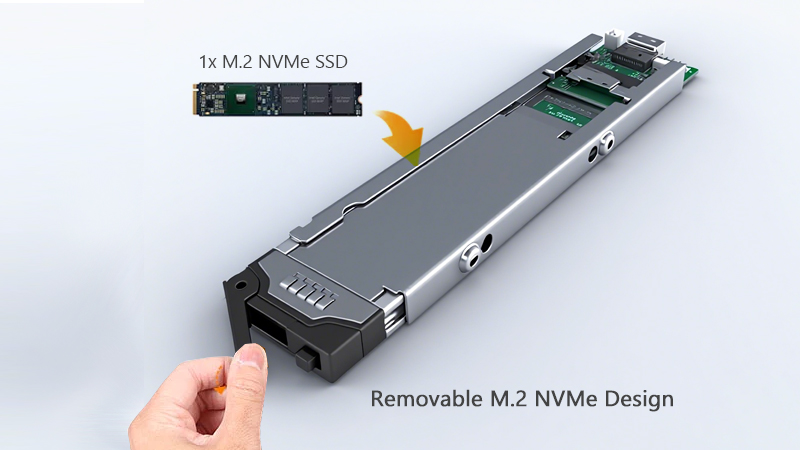

The ST9313 drive enclosure features a tool-less, removable M.2 NVMe SSD tray design, enabling quick and effortless access. This makes it ideal for demanding tasks such as data backup, system recovery, and high-performance daily operations.
The ST9313 features an adjustable M.2 locking mechanism that supports standard PCIe NVMe SSDs in multiple lengths—2242 (42mm), 2260 (60mm), and 22110 (110mm). With its tool-less installation design, setting up your M.2 NVMe SSD has never been easier.

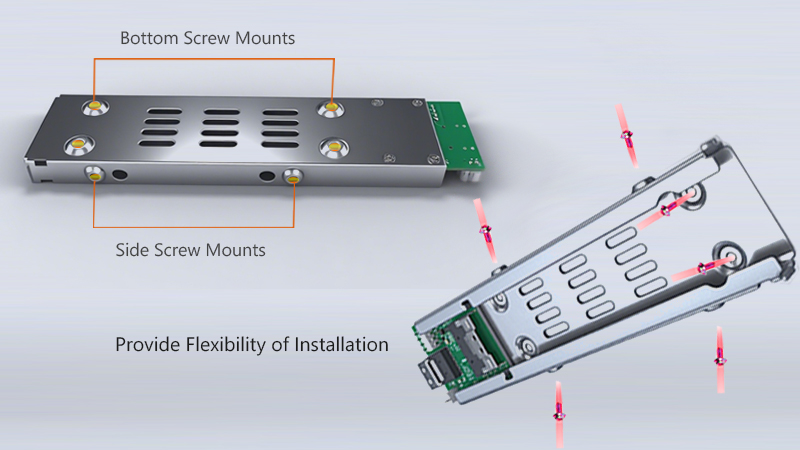

The Unestech ST9313 hard drive mobile rack boasts an innovative multi-directional installation design, providing more flexible deployment solutions. It can be securely mounted on the bottom through screw holes or vertically fixed using the reserved side mounting holes. This dual-mode installation design enables you to freely select the most appropriate orientation according to actual usage scenarios, fully catering to the personalized installation needs of diverse users.

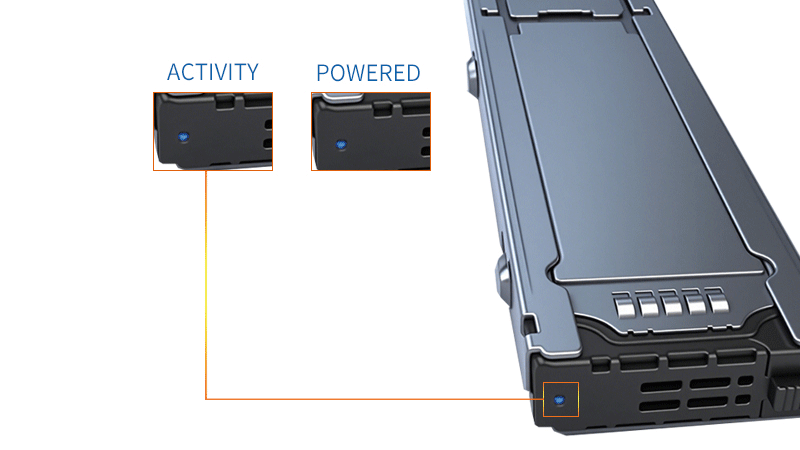

The built-in LED status light on the tray shows when your drive is powered on and in use, and it automatically turns off if no drive is installed to conserve power.

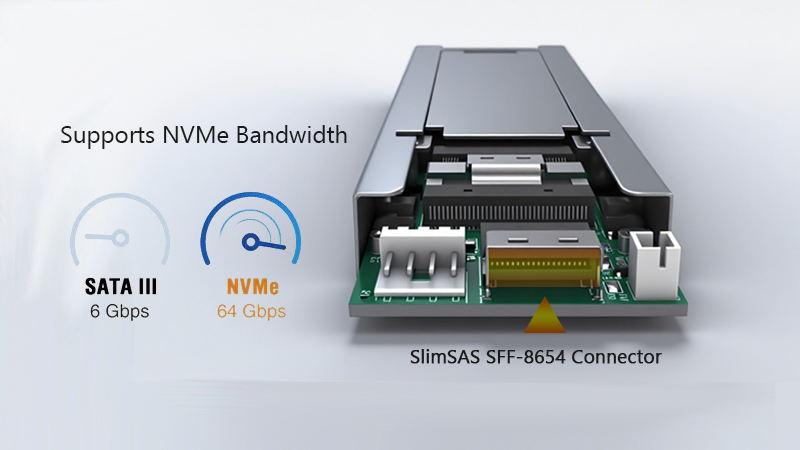

The Unestech ST9313 utilizes a PCIe 4.0 SlimSAS (SFF-8654) interface, enabling it to support the full NVMe bandwidth of 64Gbp/s. It connects to the system host via a SlimSAS 4i SFF-8654 interface and is suitable for motherboards that support SlimSAS 4i SFF-8654 ports or additional NVMe PCIe expansion cards.
